12 x 2.4 V3 Canada
Our whisper quiet flagship dimmer: re-designed with built-in ghost load. The 124x2.4kW flagship dimmer is equipped to deal with today’s challenges. Now compatible with almost all 120v LED tubes and small incandescent loads thanks to a first-ever internal ‘ghost load.’ Ratpac’s new ground-up design includes: new inductors to reduce line noise, isolated switching and more. Of course we kept the features crews have come to rely on: hoisting points, stackable design, whisper-quiet operation, bump buttons, dim/non-dim options, simple DMX addressing and built-in wireless DMX control. All products are ETL/CSA listed. Quality, reliability, and innovation, built to meet the toughest demands.
*Results vary with previous generation lamps- always test before using.

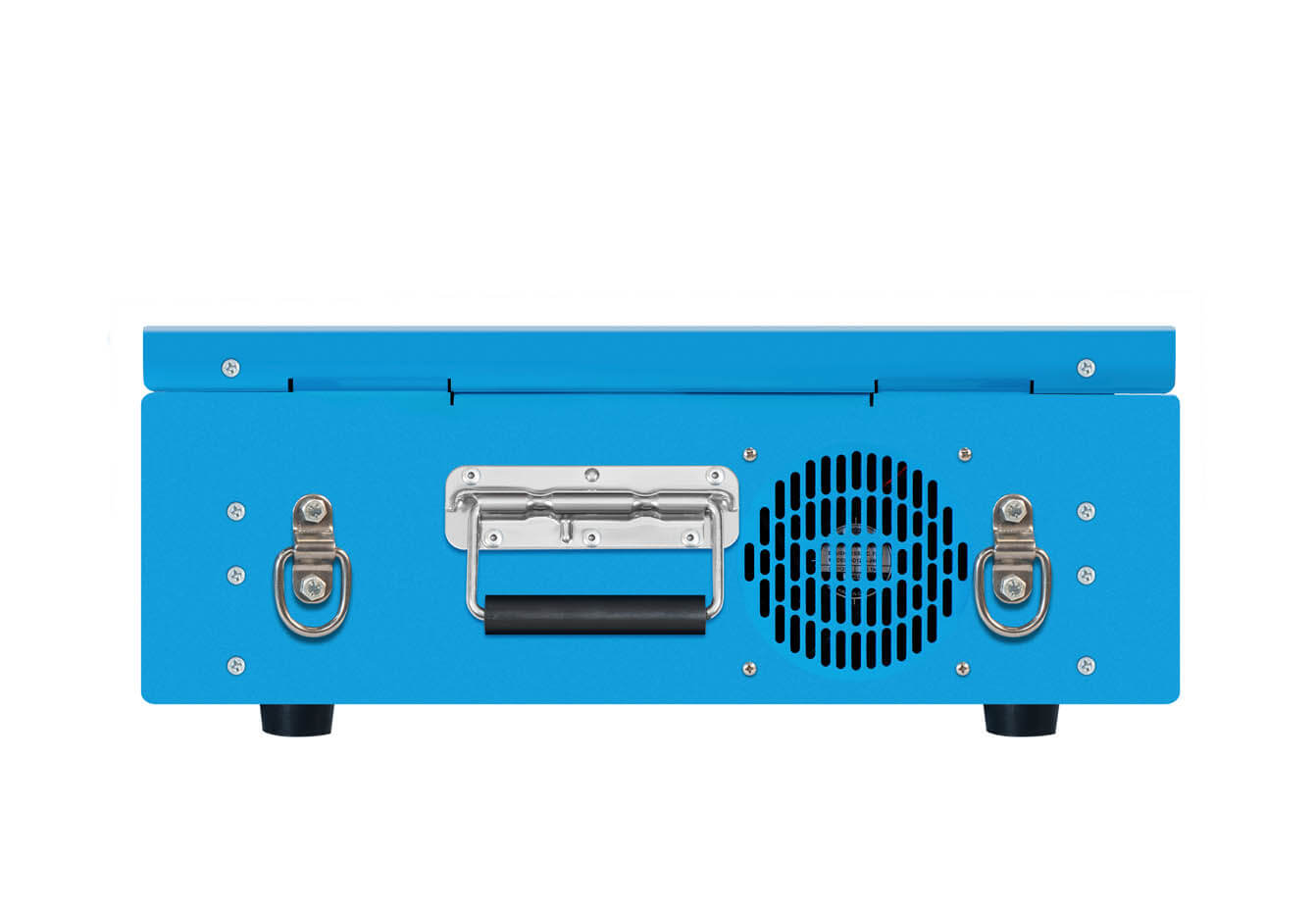

RATPAC 12 X 2.4 kW 20 INCH DIMMER
INPUT: 120/208 VAC 3 PHASE E1018 CAMLOK
OUTPUT: 2 SOCAPEX, 12 CHANNELS, 2.4 kW PER CHANNEL
DIMMING DEVICE: 120 VAC 20 A SOLID STATE RELAY
OVERLOAD PROTECTION: 20A RESETTABLE BREAKERS
CONTROL: DMX 5 PIN INPUT & OUTPUT XLR
INPUT: 120/208 VAC 3 PHASE E1018 CAMLOK
OUTPUT: 2 SOCAPEX, 12 CHANNELS, 2.4 kW PER CHANNEL
DIMMING DEVICE: 120 VAC 20 A SOLID STATE RELAY
OVERLOAD PROTECTION: 20A RESETTABLE BREAKERS
CONTROL: DMX 5 PIN INPUT & OUTPUT XLR
WIRELESS: CRMX RECEIVE OR TRANSMIT
CONTROL:
• MANUAL BUMP BUTTON, BI-COLOR INDICATED
• DIM/NON DIM DIP SWITCHES
• SELF-TERMINATING DMX STATUS QUO
• MULTI-CHANNEL ELECTRONIC GHOST LOAD
• IMPROVES DIMMING STABILITY FOR LOW WATTAGE
• INCANDESCENT BULBS & DIMMABLE LED FIXTURES
• NEW INDUCTORS INCREASE DIMMING RELIABILITY
• WHILE REDUCING NOISE
• ISOLATED SWITCHING HELPS ELIMINATE
• LAMP FLICKER
DIMENSIONS: 8”H x 20”W x 20”D
WEIGHT: 63 LBS
MODEL: 531.0133.003.0A CANADA
CONTROL:
• MANUAL BUMP BUTTON, BI-COLOR INDICATED
• DIM/NON DIM DIP SWITCHES
• SELF-TERMINATING DMX STATUS QUO
• MULTI-CHANNEL ELECTRONIC GHOST LOAD
• IMPROVES DIMMING STABILITY FOR LOW WATTAGE
• INCANDESCENT BULBS & DIMMABLE LED FIXTURES
• NEW INDUCTORS INCREASE DIMMING RELIABILITY
• WHILE REDUCING NOISE
• ISOLATED SWITCHING HELPS ELIMINATE
• LAMP FLICKER
DIMENSIONS: 8”H x 20”W x 20”D
WEIGHT: 63 LBS
MODEL: 531.0133.003.0A CANADA
